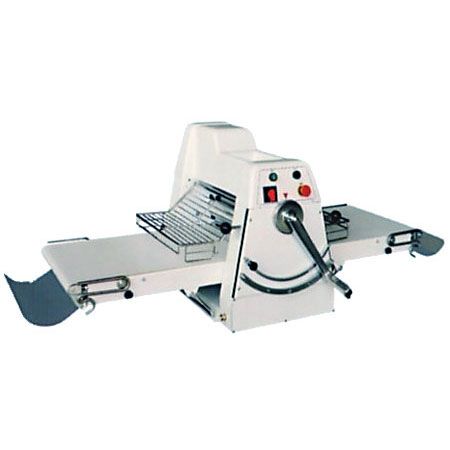

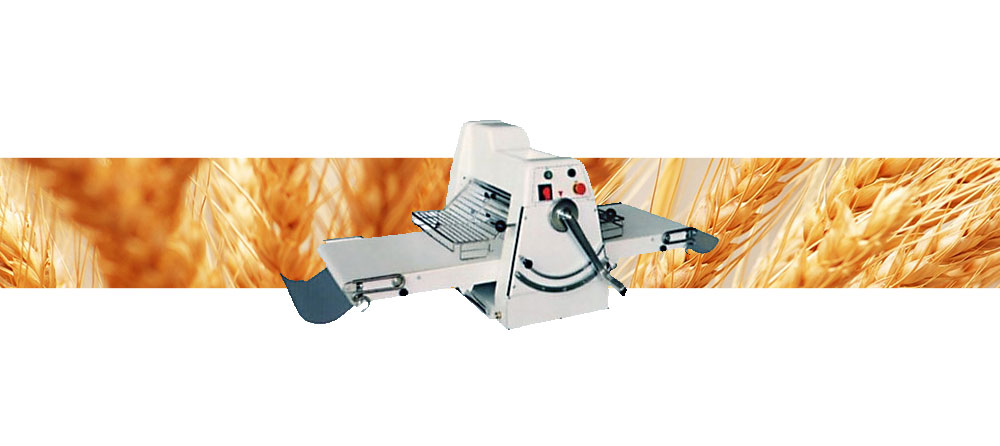

Bench Sheeter SF 500/710-950

Bench Sheeter SF 500/710-950
   PDF BROCHURE (114 KByte)
Bench Sheeter SF 500/710-950 #1

Ideal for use in small areas.

Technical Details
  Mod. 500/710 Mod. 500/950
Weight (Kg) 115 120
Cylinders Lenght (mm) 500 500
Cylinders Diameter (mm) 60 60
Cylinders Opening (mm) 0-35 0-35
Belt Measurement (mm) 500 x 710 500 x 950
Working Dimensions (mm) 1800x860x640 2320x860x640
Dimensions if Closed (mm) 520x860x830 520x860x1100
 Motor (HP) 1 1
